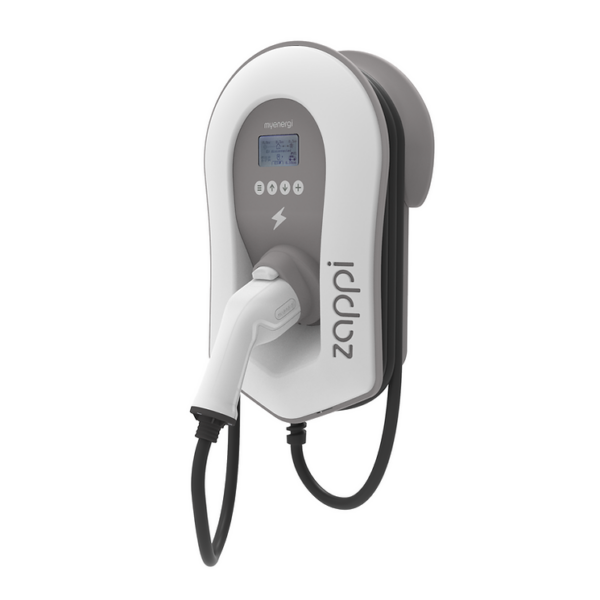

Zappi V2 charging station 22kW – 6.5 meter fixed charging cable + installation and connected to your solar panels

  The Zappi V2 has the unique feature of allowing you to charge your EV using 100% solar power that you generate yourself! The Zappi V2 is designed to fully or partially charge using solar power generated from your own solar panels. Through the charging station, you can easily select the desired settings that suit your situation. The charging station has a universal charging capacity of up to 22kW and comes with a 6.5-meter Type 2 charging cable suitable for all vehicles with a Type 2 inlet. The Zappi V2 can also be connected to both single-phase and three-phase power. With the Zappi HUB, you can quickly create an internet connection for the Zappi V2. This allows you to control the charging station with the app and receive future firmware updates. The charging station comes with 3 CT clamps that can be attached to the phase cable to measure and regulate consumption.

Advantages and Features of the Zappi V2:

KWh Meter

The screen of your Zappi always gives you an up-to-date view of the consumption of the charging sessions. You can read all charging sessions per day, per week, per month, per year, view the total, or for a custom date range.

Myenergi CT Clamp

With this CT clamp, the Zappi can measure the consumption of the house or the output of your own solar panels. One CT clamp is included with the purchase of a Zappi. An additional CT clamp allows you to measure the output of your solar panels, which can be read on the display of the charging station. For three-phase measurement, you need to use 3 CT clamps in combination with the Harvi.

Myenergi Hub

The Zappi Hub creates an internet connection for the Zappi V2 charging station in no time. This allows you to control your Zappi with the Myenergi app and read the consumption on your smartphone. Additionally, the Zappi HUB provides software updates for the Zappi charging station, ensuring it stays up-to-date and becomes smarter over time.

Myenergi Harvi

The Harvi is a small device that can communicate smartly with the Zappi V2, so you don’t need a wired CT clamp sensor. Instead, the Harvi is connected to a CT clamp, enabling the Zappi to measure grid power or the self-generated power from the solar panels.

Load Balancing

The Zappi V2 charging station is equipped with load balancing. This means that your maximum capacity, main fuse, and other consumers on the circuit are not overloaded. It efficiently uses the main connection and solar panels without overloading the fuses. Thanks to load balancing, the Zappi V2 can be fused according to the size of the main connection.

The Zappi V2 has 3 different charging modes:

ECO+ Mode

Fully charge without using grid power; the car charging is paused when the self-generated energy from the solar panels is too low. You can choose the percentage of green charging yourself.

ECO Mode

Smart charging with as much own energy as possible; when own energy is too low, energy is balanced by adding power from the grid. This is a minimum of 1.4 kW.

Fast Mode

Using the fast charge function, you can charge at maximum power. In this mode, power is supplied from the grid with a maximum capacity of 7 kW. This depends on the car you drive and the connection you have (16A or 32A).

Zappi V2 Accessories:

Myenergi CT Clamp

Standard included for load balancing to measure solar power. With this CT clamp, Zappi can measure the phase cable(s) of the main fuse, for its protection, house consumption, surplus self-generation, and also for the output of your solar panels.

Myenergi Hub

Ensures online connectivity. Necessary for updates and insight into solar panel power generation via the MyEnergi App. The Zappi hub is a small additional accessory for all Zappi models, enabling you to connect it to the internet. This allows you to control and read the Zappi via an app on your mobile phone or tablet. Additionally, you keep the Zappi up-to-date and can use new functionalities.

Myenergi Harvi

Harvi is a smart small device used to communicate with Zappi or Eddi. This allows you to work without a wired CT clamp sensor. Harvi does not require a separate power supply; the energy generated by the CT clamp via its magnetic coil is used to send the signal of the measured current to the Zappi or Eddi. This way, you can wirelessly connect the measuring clamps to the inverter to make the solar power generation visible in the Zappi app.

Myenergi Eddi

The Myenergi Eddi ensures maximum use of your self-generated energy for your electrical users by regulating the surplus energy from your solar panels to your heating devices. The Eddi also records energy-saving data to optimize use and continuously save.

3-Year Warranty Included

This product comes with a 3-year warranty. Once your Myenergi Zappi V2 is installed, register the individual products to fully benefit from the 3-year warranty for uninterrupted EV charging. Have a question about the warranty? Feel free to contact our customer service. We are happy to help!

Technical Specifications:

Nominal Power	7 kW (single-phase) or 22 kW (three-phase)
Nominal Supply Voltage	230V AC single-phase or 400V AC three-phase (+/- 10%)
Supply Frequency	50 Hz
Nominal Current	32A max
Standby Power Consumption	3W
Integral Earth Leakage Protection	30mA Type A Earth Leakage Circuit Breaker (EN 61008) + 6mA DC Protection (EN 62955)
Economy Tariff	Input 230V AC detection (4.0kV isolated)
Fixed Cable Length	6.5 meters
Enclosure Dimensions	439 x 282 x 122 mm
Protection Rating	IP65 (weatherproof)
Enclosure Material	ABS 6 and 3 mm (UL 94 flame retardant)
